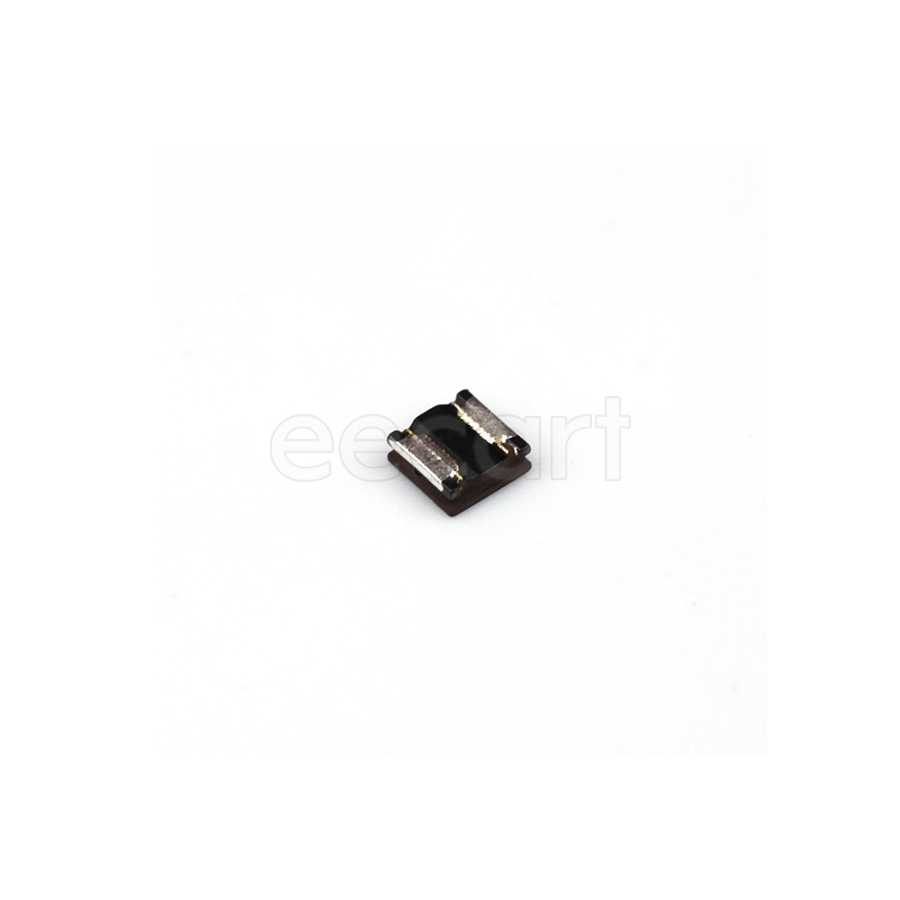

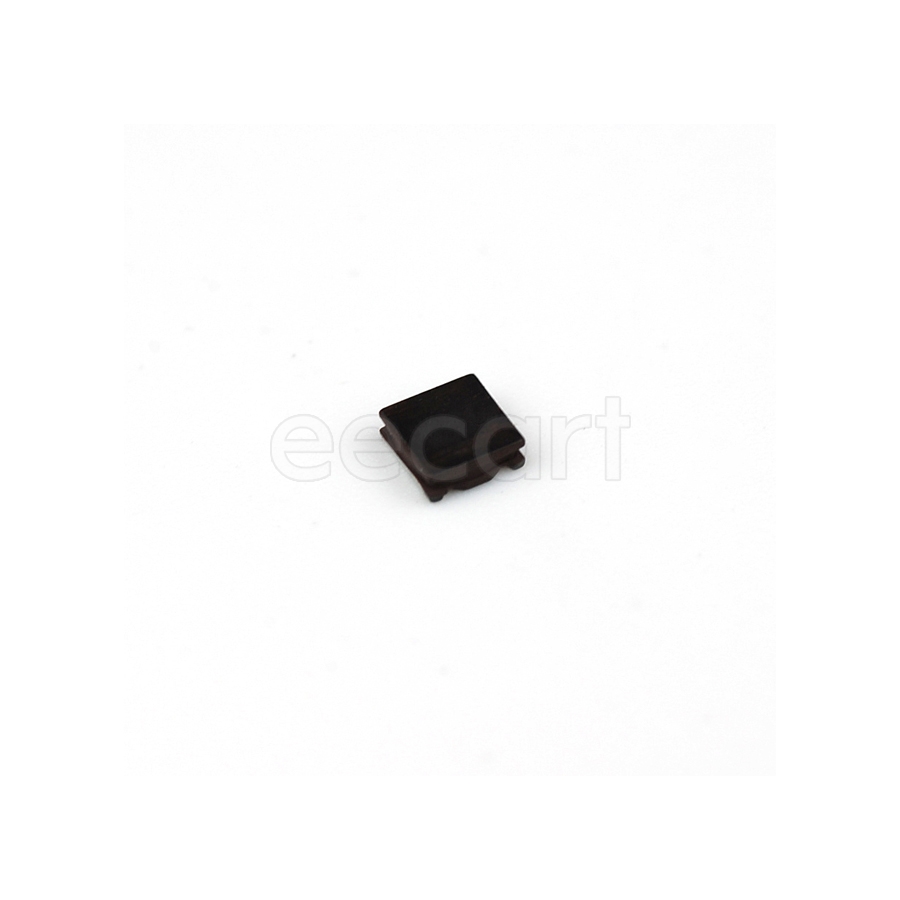

VLS3012ET-100M
Manufacturer:
TDK Corporation
Mfr.Part #:
VLS3012ET-100M
Datasheet:
Description:
Fixed Inductors SMD,3.00mm×3.00mm×1.20mm SMD/SMT 10 µH 20 % 640 mA 336 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1.2 mm |
| Length | 2.9972 mm |
| Width | 2.9972 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 336 mΩ |
| Composition(Kit Type) | Wirewound |
| Height | 1.2 mm |
| Depth | 3.1 mm |
| Radiation Hardening | No |
| Current Rating | 640 mA |
| DC Resistance (DCR) | 336 mΩ |
| Test Frequency | 1 MHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| Max DC Current | 760 mA |
| Saturation Current | 640 mA |
| Schedule B | 8504500000 |
| RoHS | Compliant |
| Packaging | Reel |
| Type | Wirewound |
Stock: 136
Distributors
pcbx
pcbxUnit Price$0.10195
Ext.Price$0.10195
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10195 | $0.10195 |
| 10 | $0.09148 | $0.91480 |
| 50 | $0.08208 | $4.10400 |
| 100 | $0.07320 | $7.32000 |
| 500 | $0.06528 | $32.64000 |
| 1000 | $0.06086 | $60.86000 |
| 3000 | $0.05674 | $170.22000 |
